Medium Excavator

Brand-New XE215GA Excavator：Original Factory Quality

Rated power: 129/2000kW/rpm

Operation weight: 22500kg

Bucket capacity: 0.8~1.3m³

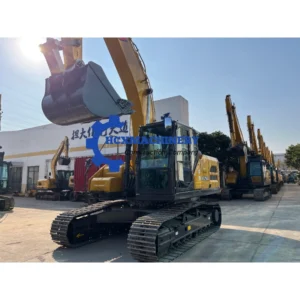

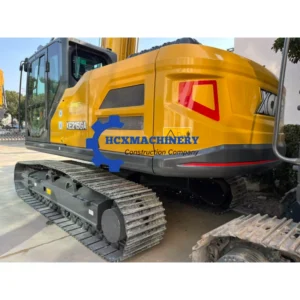

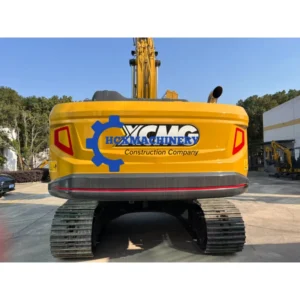

XE215GA

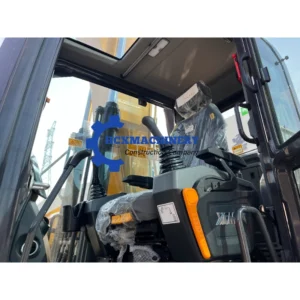

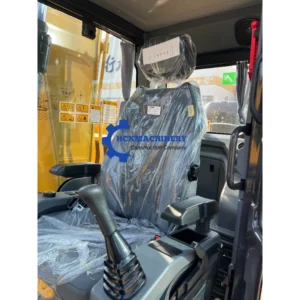

The XCMG XE215GA is a new-generation National IV emission-compliant hydraulic excavator. It is equipped with a Cummins low-speed, high-torque engine, an electronic-controlled positive-flow hydraulic system, and XCMG’s independently developed PIC feedforward intelligent control technology. Featuring a brand-new extra-large visibility cab and compatibility with a 135mm pin-diameter breaker, the excavator is widely applicable to various working conditions.

PARAMETERS

Working Range

Working Range Item	Unit	Value
A Maximum Digging Height	mm	9620
B Maximum Dumping Height	mm	6780
C Maximum Digging Depth	mm	6680
D Maximum Digging Radius	mm	9940
E Minimum Swing Radius	mm	3530

Basic Model Information

Item	Specification
Model	XE215GA
Operating Weight	22500 Kg
Bucket Capacity	0.8~1.3 m³

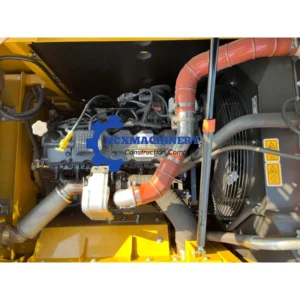

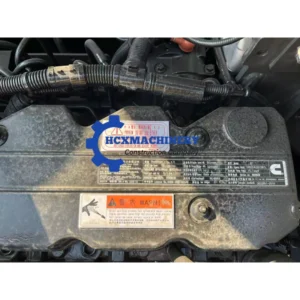

Engine

Engine Item	Specification
Model	B7
Direct Injection	√
4-Stroke	√
Water Cooling	√
Turbocharging	√
Air-to-Air Intercooler	√
Number of Cylinders	6
Rated Output Power/Speed	129 kW / 2000 rpm
Maximum Torque/Speed	850 N·m / 1200 rpm
Displacement	6.7 L

Oil Capacity

Oil Capacity Item	Unit	Value
Fuel Tank Capacity	L	400
Hydraulic Tank Capacity	L	150
Engine Oil Capacity	L	23.7

Overall Dimensions

Dimension Item	Unit	Value
A Overall Length	mm	9800
B Overall Width	mm	2990
C Overall Height	mm	3100
D Turntable Width	mm	2830
E Track Length	mm	4255
F Overall Chassis Width	mm	2990
G Standard Track Shoe Width	mm	600
H Track Wheelbase	mm	3462
I Track Gauge	mm	2390
J Counterweight Ground Clearance	mm	1100
K Minimum Ground Clearance	mm	480
L Minimum Tail Swing Radius	mm	3035
M Track Height	mm	940

Working Device

Configuration	Item	Dimension (mm) / Capacity
Standard	Boom Length	5680
	Arm Length	2910
	Bucket Capacity	1.05 m³ (Reinforced Bucket)
Optional	Boom Length	5200
	Arm Length	2410
	Bucket Capacity	0.8~1.3 m³

Main Performance

Performance Item	Unit	Value
Travel Speed (High/Low)	km/h	6.0 / 3.3
Swing Speed	r/min	11.8
Gradeability	°	≤ 35
Ground Pressure	kPa	48.6
Bucket Digging Force	kN	165
Arm Digging Force	kN	120
Maximum Traction Force	kN	184

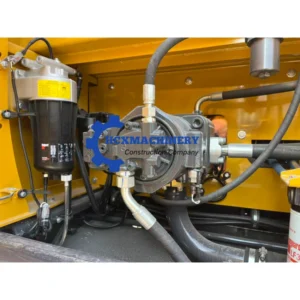

Hydraulic System

Hydraulic System Item	Specification
Main Pump	2 Piston Pumps
Rated Flow of Main Pump	2×225 L/min
Main Safety Valve Pressure	34.3 / 37 MPa
Travel System Pressure	34.3 MPa
Swing System Pressure	28 MPa
Pilot System Pressure	3.9 MPa
