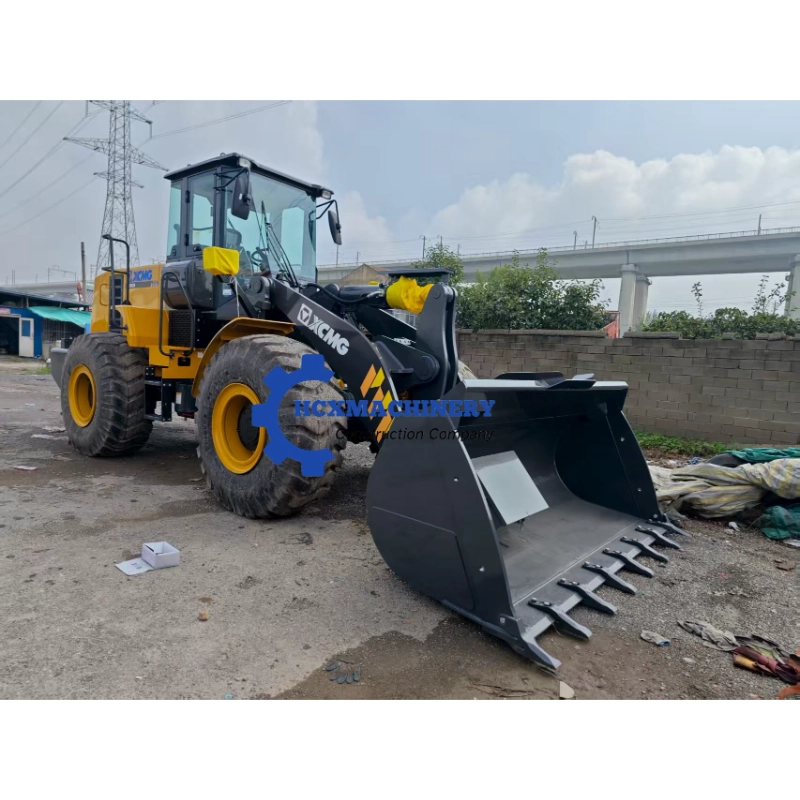

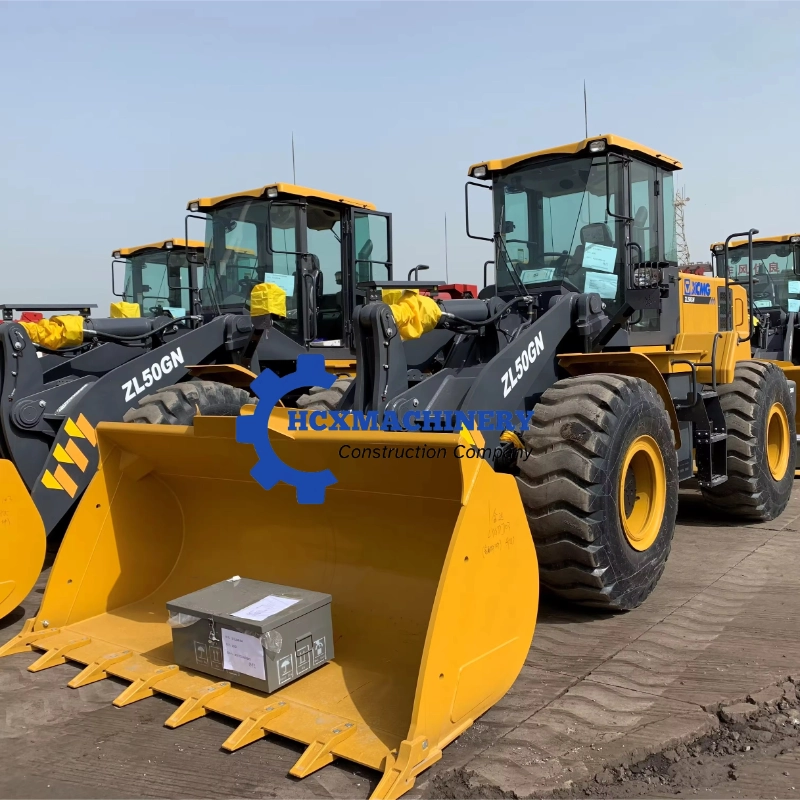

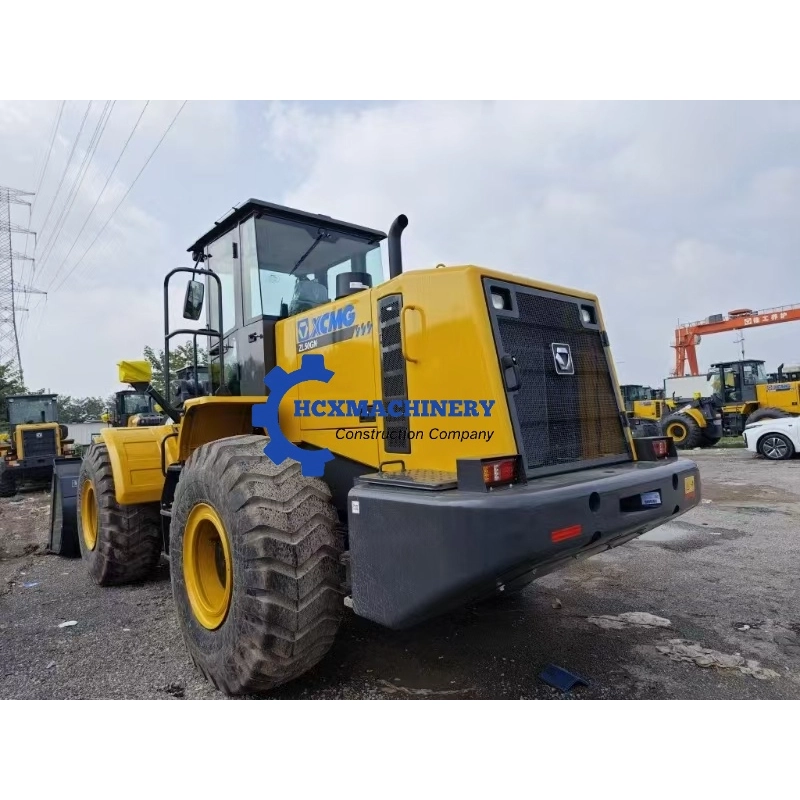

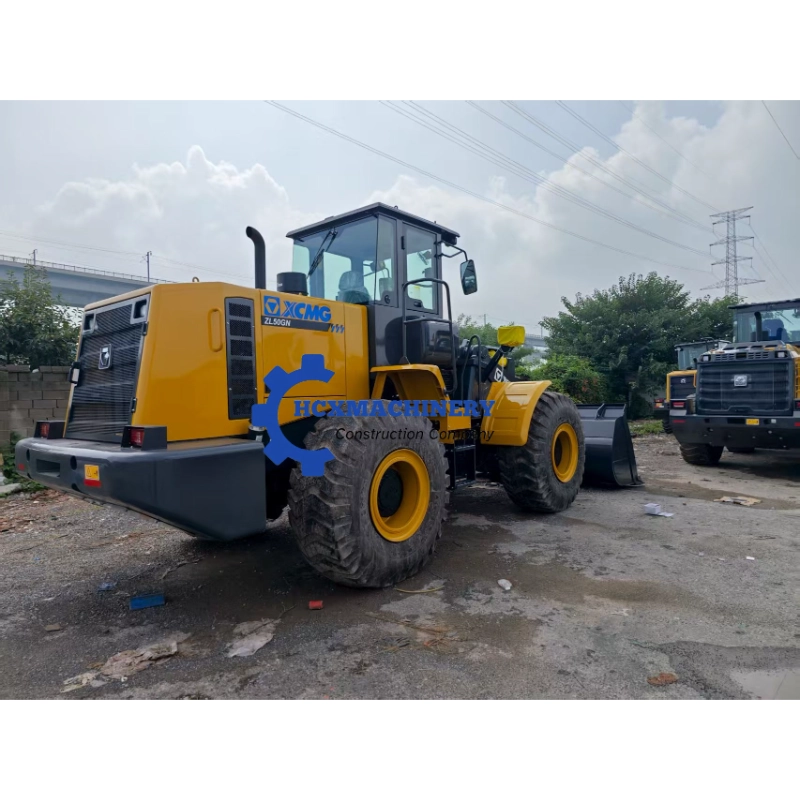

Original Factory Quality ZL50GN Wheel Loader

Rated power: 162KW

Operation weight: 5000kg

Bucket capacity: 2.5m³

ZL50GN

ZL50GN wheel loader is the latest cross-generation product developed by XCMG on the basis of the globalized technologic resources.Focusing on customer value and emphasizing customer experiences, XCMG loader is the first-choice equipment for the production organization in the fields of ports, mines, engineering constructions, and logistics.

PARAMETERS

Description	Specification	Unit
Rated operating load	5000	kg
Bucket capacity	2.5~4.5	m³
Machine weight	17500+300	kg
Dump clearance at maximum lift	3100~3780	mm
Reach at maximum lift	1100~1220	mm
Wheel base	3300	mm
Tread	2250	mm
Max. breakout force	175±5	kN
Max. horse power	160±5	kN
Hydraulic cycle time – raise	5.6	s
Total hydraulic cycle time	10.5	s
Min. turning radius over tyres	5925±50	mm
Articulation angle	38°	–
Gradeability	30°	–
Tyre size	23.5-25-16PR	–
Overall machine dimension (L×W×H)	8225×3016×3515	mm

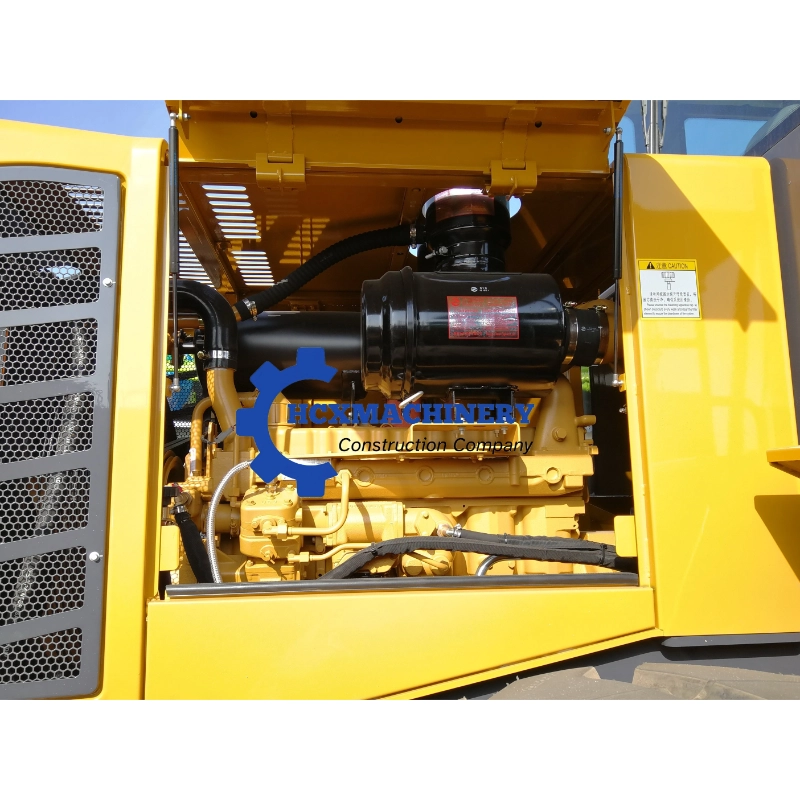

Model (Engine)	WD10G220E21	–
Rated Power (Engine)	162	kW
Travel speed – I-gear (F/R)	13/17	km/h
Travel speed – II-gear (F)	41	km/h

Gear (Forward/Reverse)	Speed	Unit
Gear 1 (Forward/Reverse)	6.5/6.5	km/h
Gear 2 (Forward/Reverse)	11/11	km/h
Gear 3 (Forward/Reverse)	24/24	km/h
Gear 4 (Forward/Reverse)	38/-	km/h

Item	Side dumping bucket (staggered teeth)	Clamp	Pipe clamp	Clipping teeth	Toad’s mouth	Grass grabbing bucket	Snowplow	Pallet fork	Unit
Bucket capacity	2.5	–	–	–	–	–	–	–	m³
Rated load	4500	5000	5000	5000	5000	4500	5000	5000	kg
Dump clearance at maximum lift (front dump)	3100	3160	3230	3230	3000	3200	3210	3210	mm
Reach at maximum lift (front dump)	1220	1820	1845	1845	1900	2050	1760	1760	mm
Dump clearance/reach at maximum lift (side dump)	4080/1170	–	–	–	–	–	–	–	mm
Overall height at maximum lift	3860	3860	3860	3860	3860	3860	3860	3860	mm
Max. dumping angle (work tool)	45°	30°	30°	30°	35°	20°	26°	–	–
Max. opening	2270	1780	1900	2330	2900	–	–	–	mm
Max. clamping diameter	–	1000	430	450	850	1470	–	–	mm
Max. working width (snowplow)	–	–	–	–	–	–	3800	–	mm
Slewing angle (horizontal)	–	35°	–	–	–	–	–	–	–
Swing angle (snowplow)	–	–	–	–	–	–	±6°	–	–
Rack back angle at ground	23°	23°	23°	23°	23°	23°	23°	23°	–
Length (work tool)	2050	1855	1855	2180	2330	1940	1945	1945	mm
Width (work tool)	2948	2198	2356	2356	1900	2580	3800	2500	mm
Height (work tool)	1630	1470	1810	1790	1930	1005	1290	1290	mm
Tine length (pallet fork)	–	–	–	–	–	–	–	1200	mm
