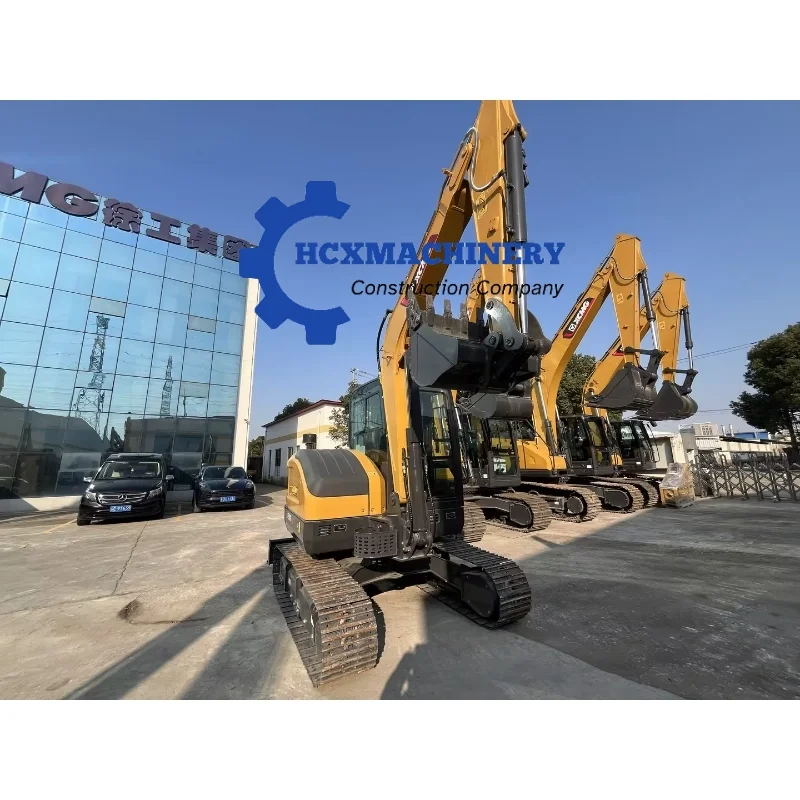

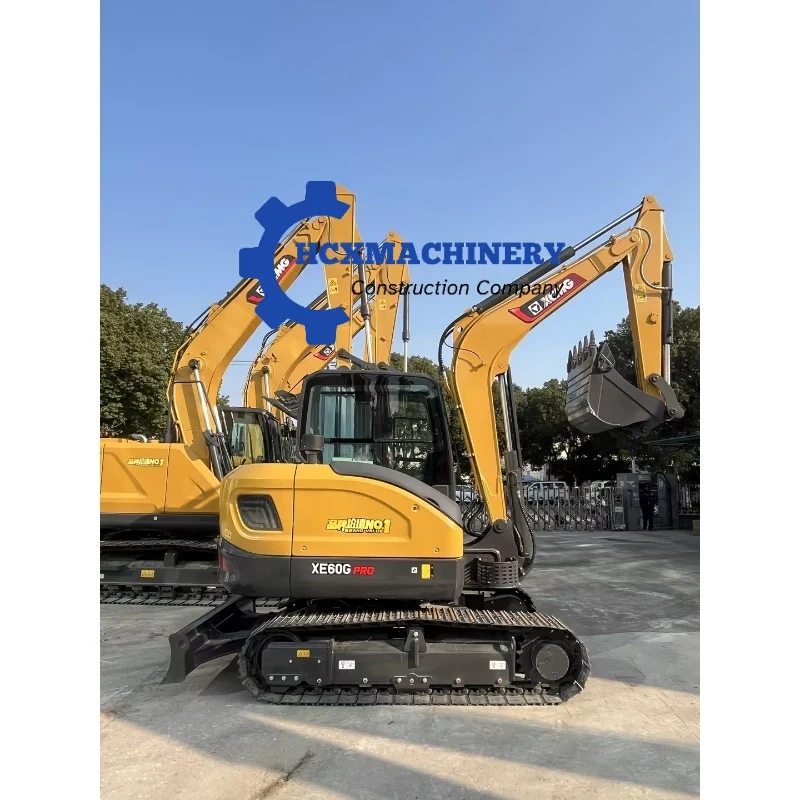

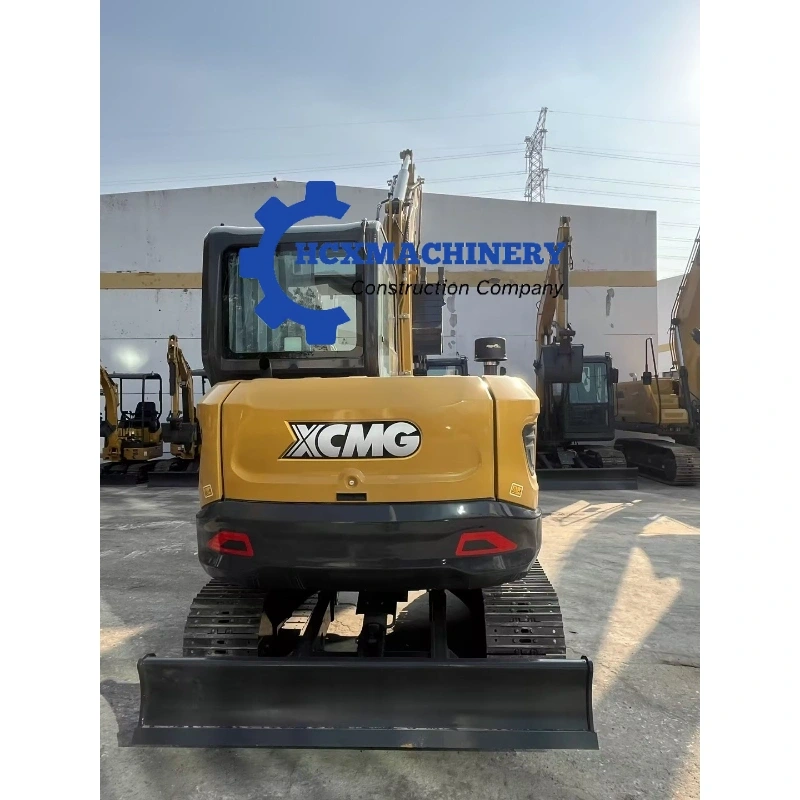

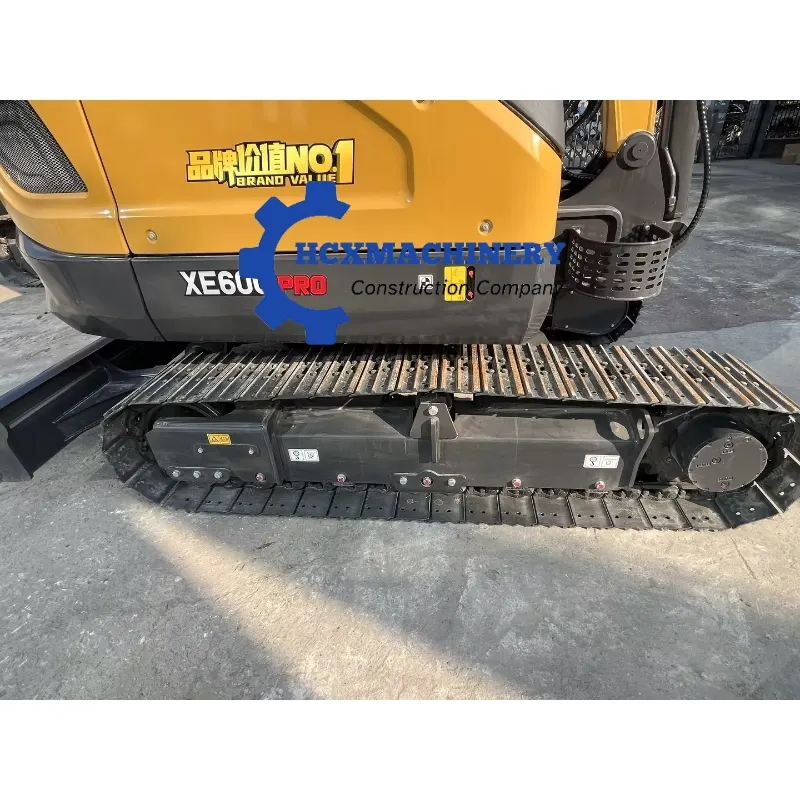

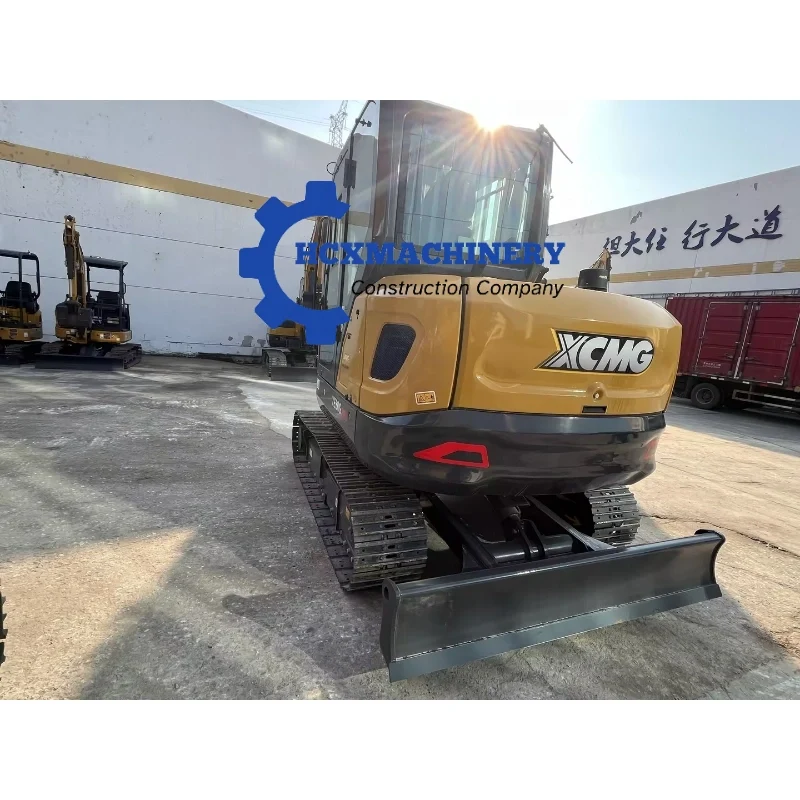

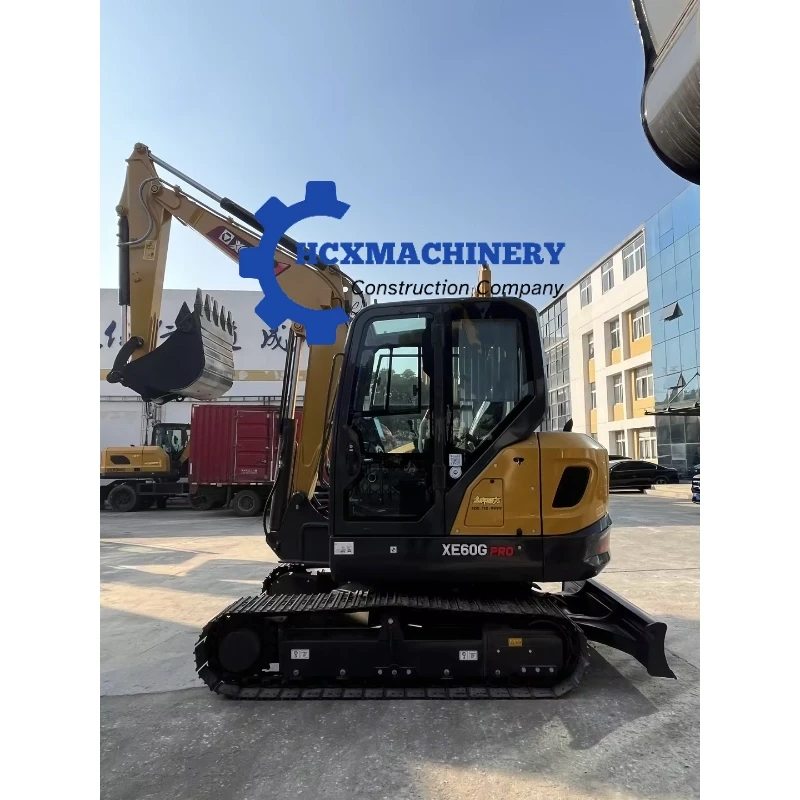

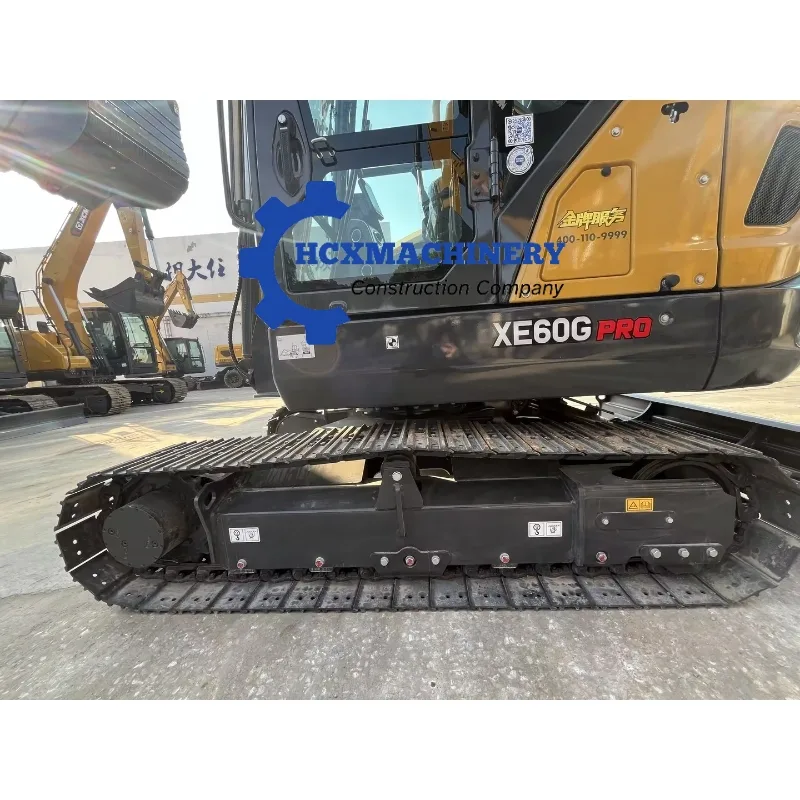

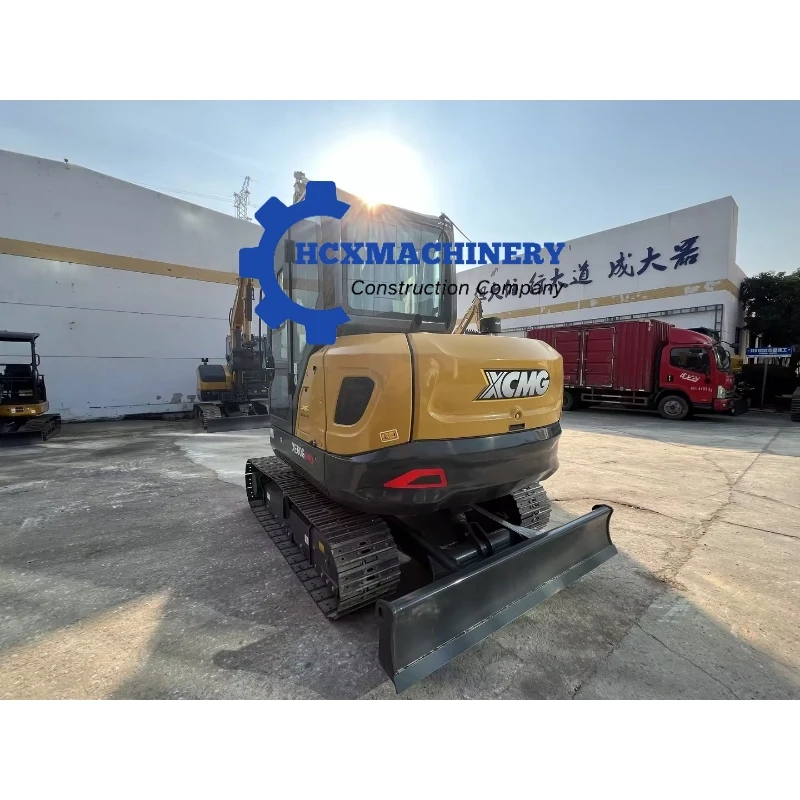

Mini Excavator Good Quality XE60Gpro For Sale
Rated power: 35.0kw/2200rpm
Operation weight: 6000kg
Bucket capacity: 0.24m³

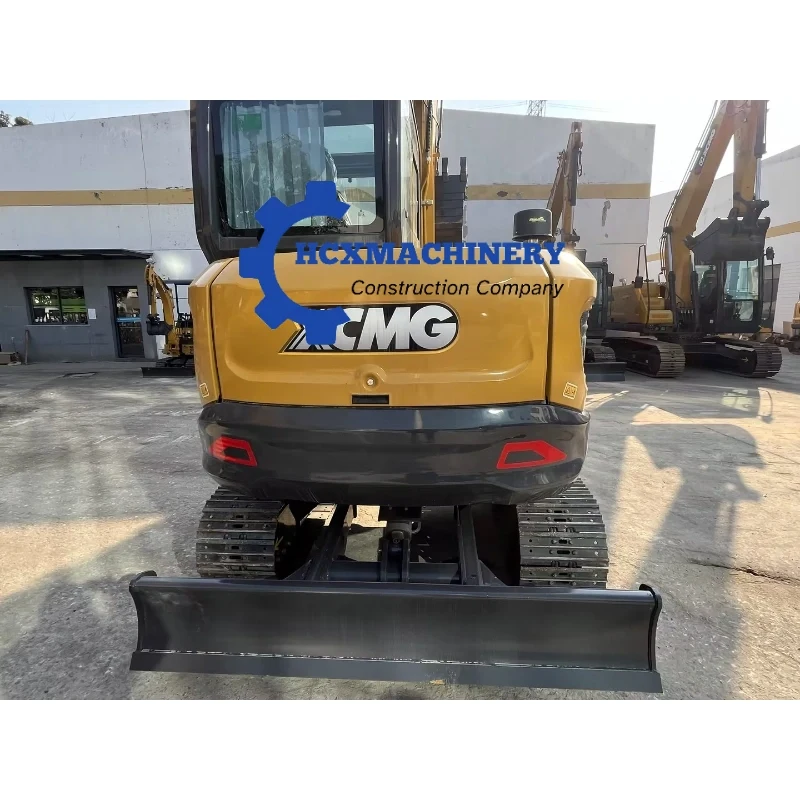

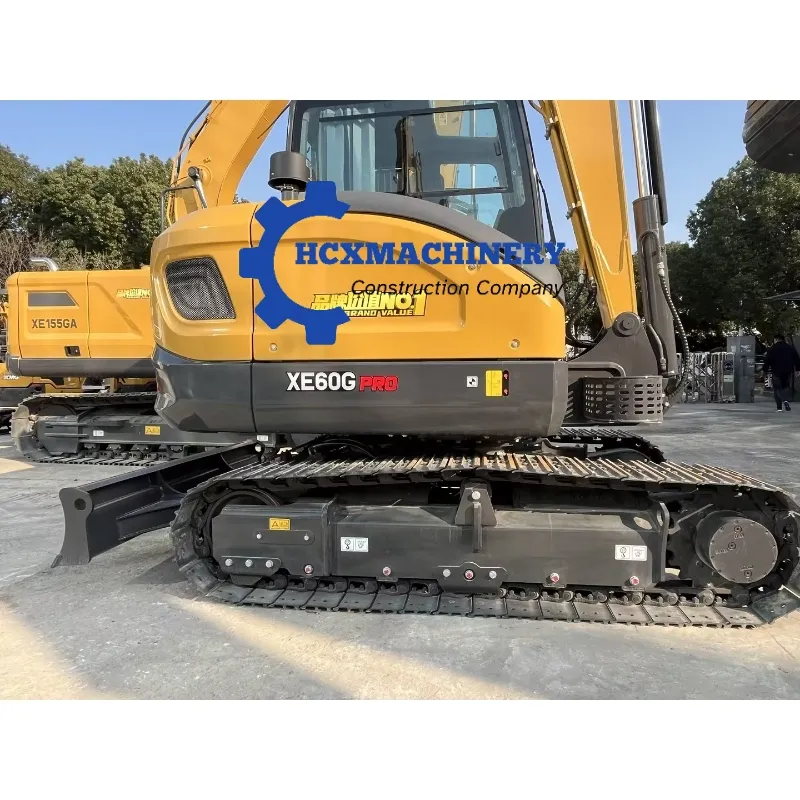

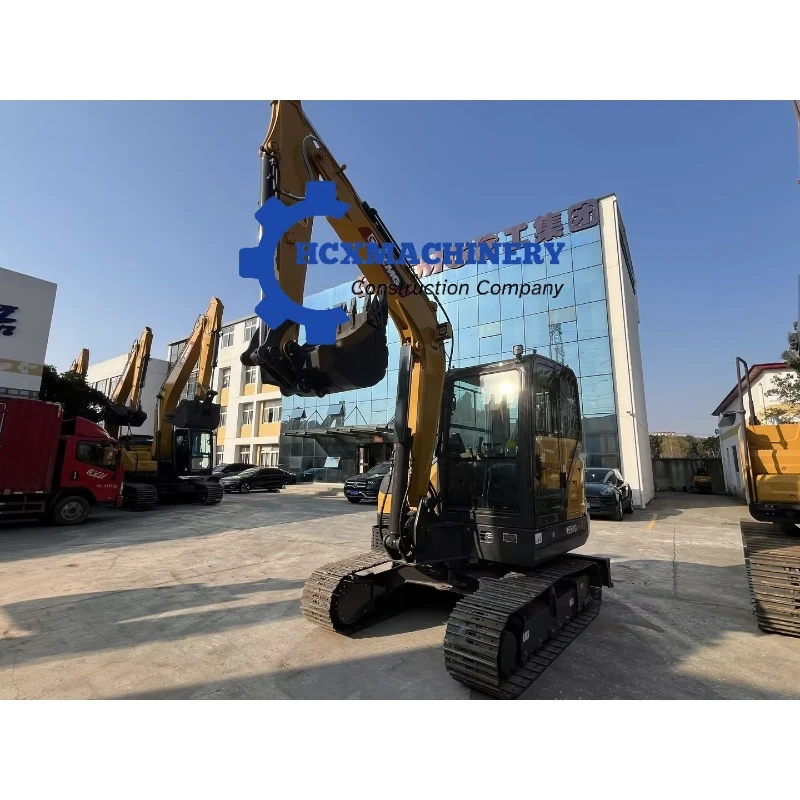

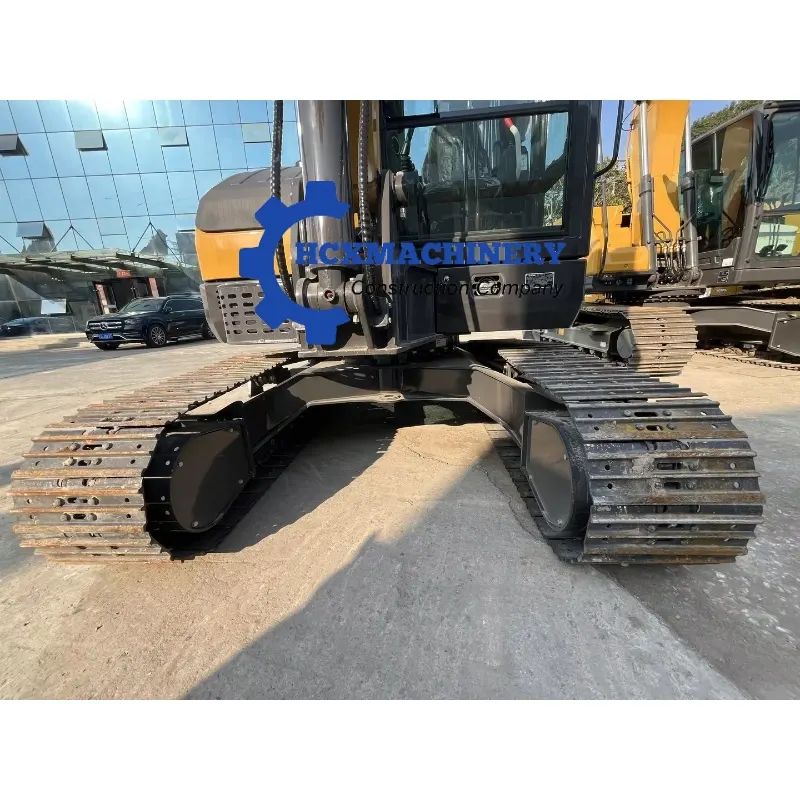

XE60Gpro
XE60Gpro is a 6-ton compact crawler excavator designed for small-to-medium construction projects.It excels at foundation digging, pipeline laying, land leveling and garden renovation in space-restricted areas.Its compact body and flexible operation make it ideal for urban micro-construction and rural infrastructure works.
Parameter
|
Category
|
Item
|
Parameter
|
Unit
|
|
Engine
|
Model
|
V2507
|
/
|
|
Direct Injection
|
√
|
/
|
|
|
4-Stroke
|
√
|
/
|
|
|
Water-Cooled
|
√
|
/
|
|
|
Turbocharged
|
√
|
/
|
|
|
Air-to-Air Intercooled
|
√
|
/
|
|
|
Number of Cylinders
|
4
|
unit
|
|
|
Rated Output Power
|
35/2200
|
kW/rpm
|
|
|
Maximum Torque
|
171.5/800-1800
|
N.m/rpm
|
|
|
Displacement
|
2.515
|
L
|
|
|
Model
|
Operating Weight
|
6000
|
kg
|
|
Bucket Capacity
|
0.24
|
m³
|
|
|
Working Device
|
Boom Length (Standard)
|
3000
|
mm
|
|
Stick Length (Standard)
|
1600
|
mm
|
|
|
Bucket Capacity (Standard)
|
0.24
|
m³
|
|
|
Fluid Capacity
|
Fuel Tank Capacity
|
130
|
L
|
|
Engine Oil Capacity
|
85
|
L
|
|
|
Engine Oil Capacity
|
9
|
L
|
|
|
Overall Dimensions
|
Total Length (A)
|
6010
|
mm
|
|
Total Width (B)
|
2000
|
mm
|
|
|
Total Height (C)
|
2650
|
mm
|
|
|
Counterweight Height (D)
|
1880
|
mm
|
|
|
Track Length (E)
|
2535
|
mm
|
|
|
Total Height (F)
|
2000
|
mm
|
|
|
Standard Track Width (G)
|
400
|
mm
|
|
|
Track Gauge (H)
|
1690
|
mm
|
|
|
Machine Height (I)
|
1600
|
mm
|
|
|
Counterweight Ground Clearance (J)
|
100
|
mm
|
|
|
Track Shoe Width (K)
|
760
|
mm
|
|
|
Minimum Ground Clearance (L)
|
385
|
mm
|
|
|
Track Ground Radius (M)
|
1700
|
mm
|
|
|
Track Height (N)
|
605
|
mm
|
|
|
Working Range
|
Maximum Digging Height (A)
|
5690
|
mm
|
|
Maximum Dumping Height (B)
|
3845
|
mm
|
|
|
Maximum Digging Depth (C)
|
3850
|
mm
|
|
|
Maximum Vertical Digging Depth (D)
|
2680
|
mm
|
|
|
Maximum Digging Radius (E)
|
6190
|
mm
|
|
|
Minimum Swing Radius (F)
|
2400
|
mm
|
|
|
Main Performance
|
Travel Speed
|
4.2/2.4
|
km/h
|
|
Swing Speed
|
11
|
r/min
|
|
|
Gradeability
|
**35
|
°
|
|
|
Ground Pressure
|
33.4
|
kPa
|
|
|
Bucket Digging Force
|
48.3
|
kN
|
|
|
Stick Digging Force
|
32.5
|
kN
|
|
|
Maximum Traction Force
|
50.5
|
kN
|
|
|
Boom Swing Angle (Left)
|
/
|
°
|
|
|
Boom Swing Angle (Right)
|
/
|
°
|
|
|
Hydraulic System
|
Main Pump Type
|
Piston Pump
|
/
|
|
Main Pump Flow
|
168.4
|
L/min
|
|
|
Main Pump Setting Pressure
|
24.5
|
MPa
|
|
|
Travel System Pressure
|
24
|
MPa
|
|
|
Swing System Pressure
|
24
|
MPa
|
|
|
Pilot System Pressure
|
3.5
|
MPa
|
