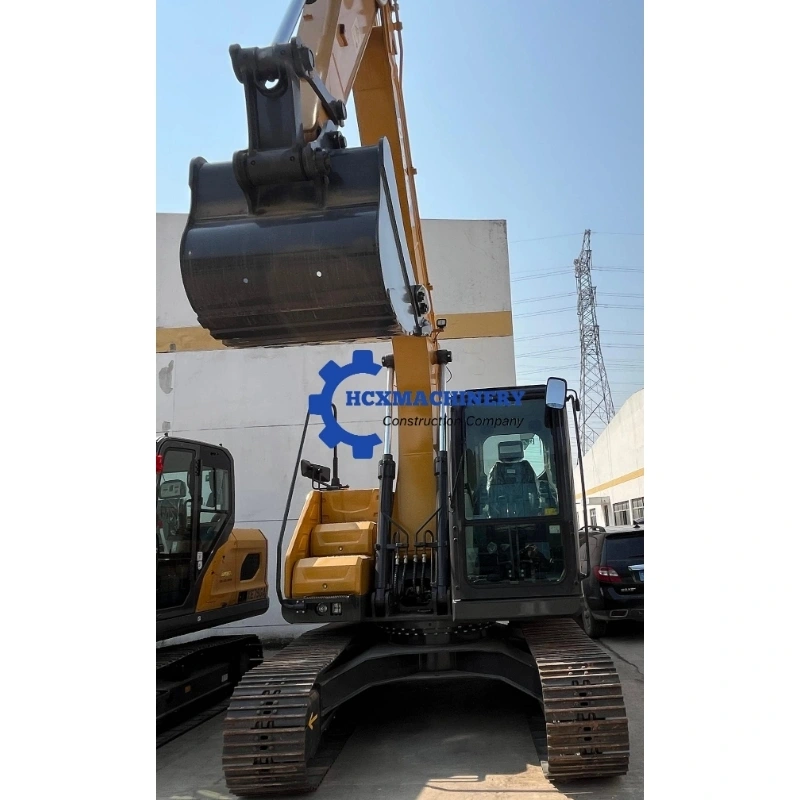

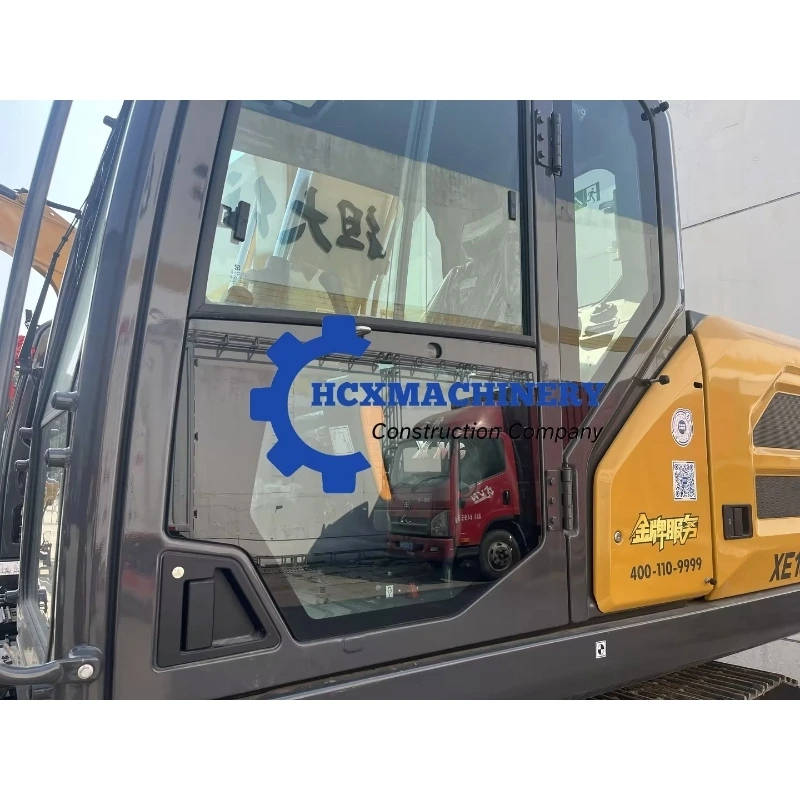

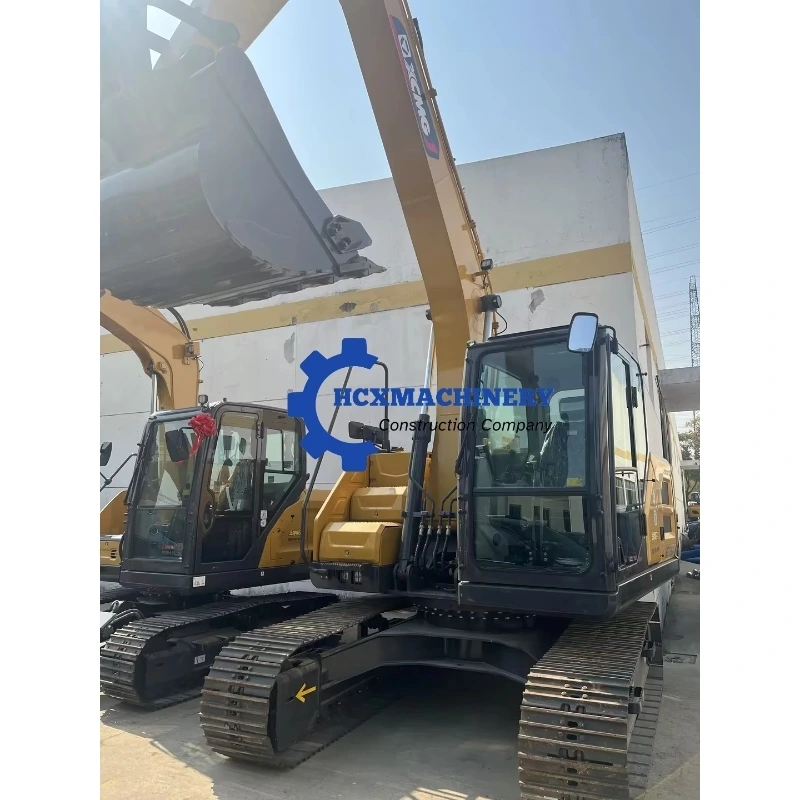

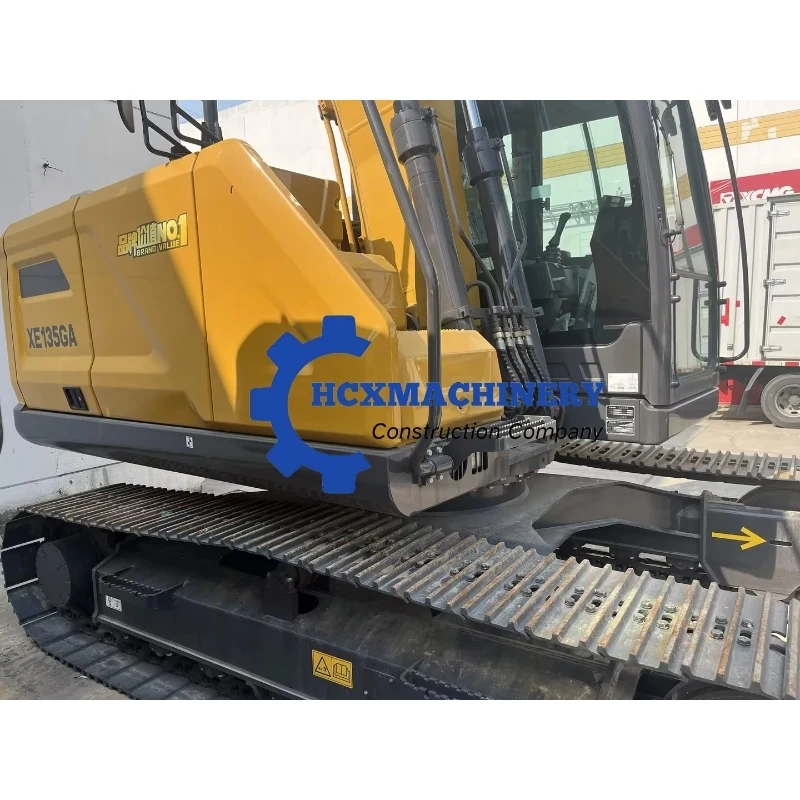

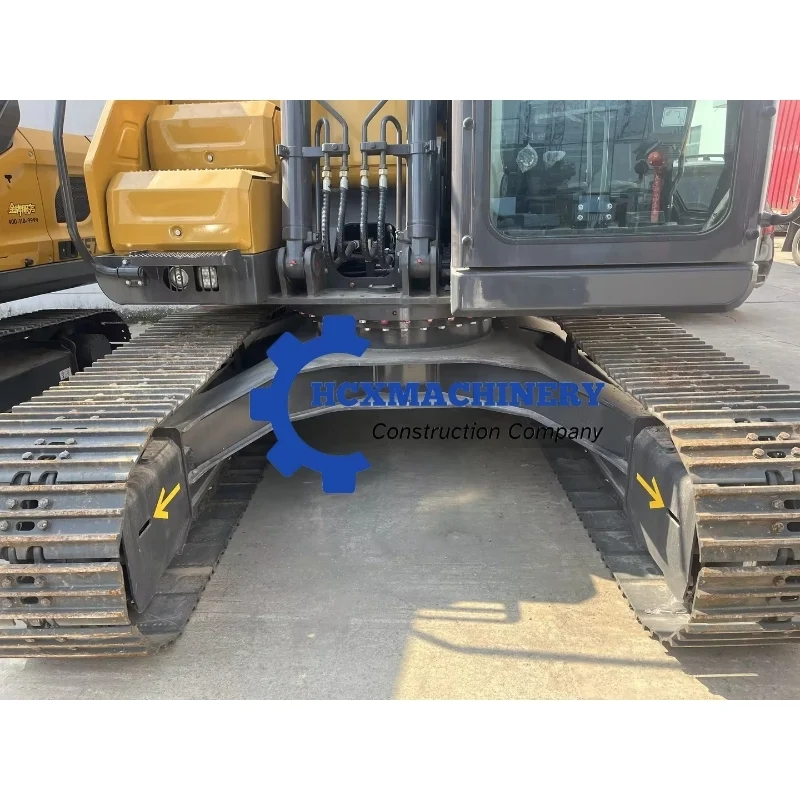

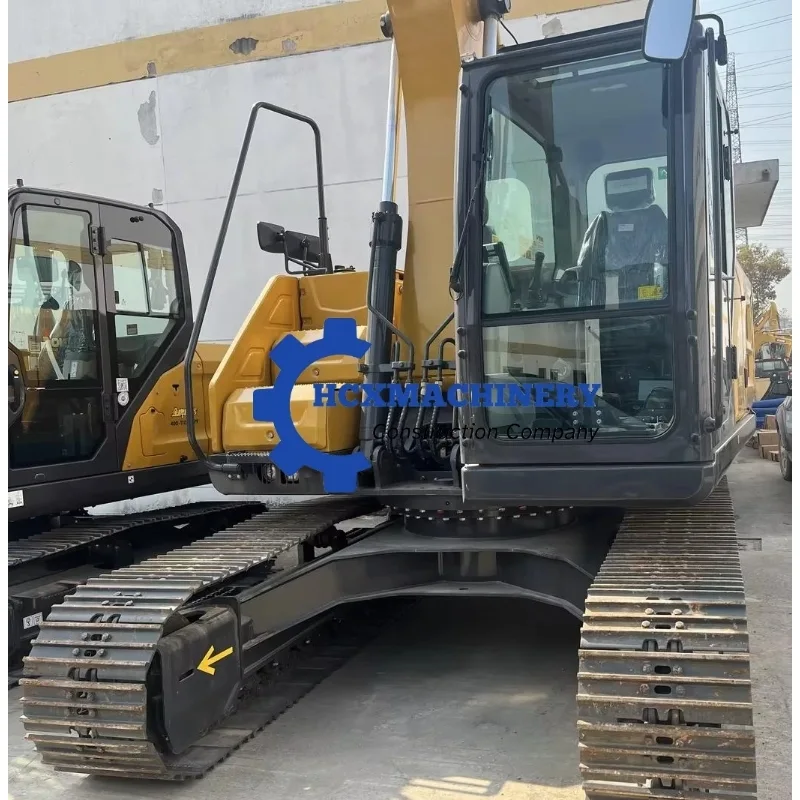

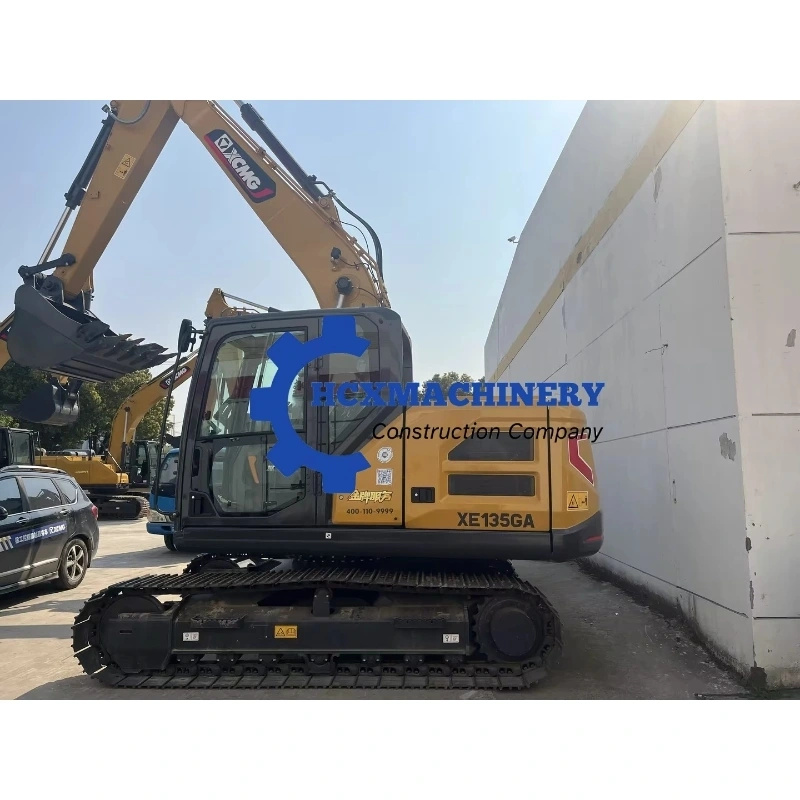

Good Quality XE135GA Used Excavator For Sale
Rated power
89kw/2200rpm
Operation Weight
13500Kg
Bucket capacity
0.32～0.61m³
XE135GA
The hydraulic excavator is equipped with a low-speed high-torque engine with high efficiency and low fuelconsumption. The large undercarrige and pilot buffer are more stable and comfortable to operate; the maintenance parts are moved outwards, the maintenance period is extended, the maintenance is more convenient; a variety of optional accessories, as well as altitude adaptive control functions, the environment adaptability is better. Can be widely used in small and medium-sized earth and stone works, highway and bridge construction, trenching and construction, farmland water conservancy, river dredging and municipal construction. It can also achieve different operations such as digging, crushing and dismantling, and is highly adaptable to working conditions.
PARAMETERS
| Model | Unit | XE135GA | |
| Operating weight | Kg | 13500 | |
| Bucket capacity | m³ | 0.32～0.61 | |
| Engine | Model | / | F4.5CS4119 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooled | / | √ | |
| Turbocharged | / | √ | |
| Air to air intercooler | / | √ | |
| Number of cylinders | / | 4 | |
| Rated power/speed（ISO） | kw/rpm | 89/2200 | |
| Maximum torque/speed | N.m | 500/1300 | |
| Piston displacement | L | 4.5 | |
| Main performance | Travel speed（H/L) | km/h | 5.3/3.0 |
| Swing speed | r/min | 10.9 | |
| Gradeability | ° | ≤35 | |
| Ground pressure | kPa | 41 | |
| Bucket digging force | kN | 99 | |
| Arm digging force | kN | 74 | |
| Maximum tractive force | kN | 134 | |
| Hydraulic system | Main pump | / |
Variable pump |
| Rated flow of main pump | L/min | 2×124 | |
| Relief valve setting pressure | MPa | 31.4/34.3 | |
| Travel system pressure | MPa | 34.4 | |
| Swing system pressure | MPa | 25 | |
| Pilot system pressure | MPa | 3.9 | |
| Oil Capacity | Fuel tank capacity | L | 240 |
| Hydraulic tank capacity | L | 95 | |
| Engine oil capacity | L | 11 | |
| Appearance size | Overall length | mm | 7825 |
| Overall width | mm | 2525 | |
| Overall height | mm | 2950 | |
| Width of platform | mm | 2490 | |
| Track length | mm | 3648 | |
| Overall width of undercarriage | mm | 2490 | |
| Track shoe width | mm | 500 | |
| Tumbler distance | mm | 2918 | |
| Track gauge | mm | 1990 | |
| Counterweight clearance | mm | 931 | |
| Minimum ground clearance | mm | 466 | |
| Minimum tail swing radius | mm | 2360 | |
| Track height | mm | 802 | |
| Working scope | Maximum digging height | mm | 8620 |
| Maximum dumping height | mm | 6175 | |
| Maximum digging depth | mm | 5545 | |
| Maximum depth cut for 8 ft level bottom | mm | 5335 | |
| Maximum Vertical digging depth | mm | 4575 | |
| Maximum digging radius | mm | 8295 | |
| Minimum swing radius | mm | 2445 | |
| Standard | Length of boom | mm | 4600 |
| Length of arm | mm | 2520 | |
| Bucket capacity | m³ | 0.55 | |
| Optional | Length of boom | mm | – |
| Length of arm | mm | 2100/3010 | |
| Bucket capacity | m³ | 0.32/0.4/0.61(Earthwork bucket) | |
